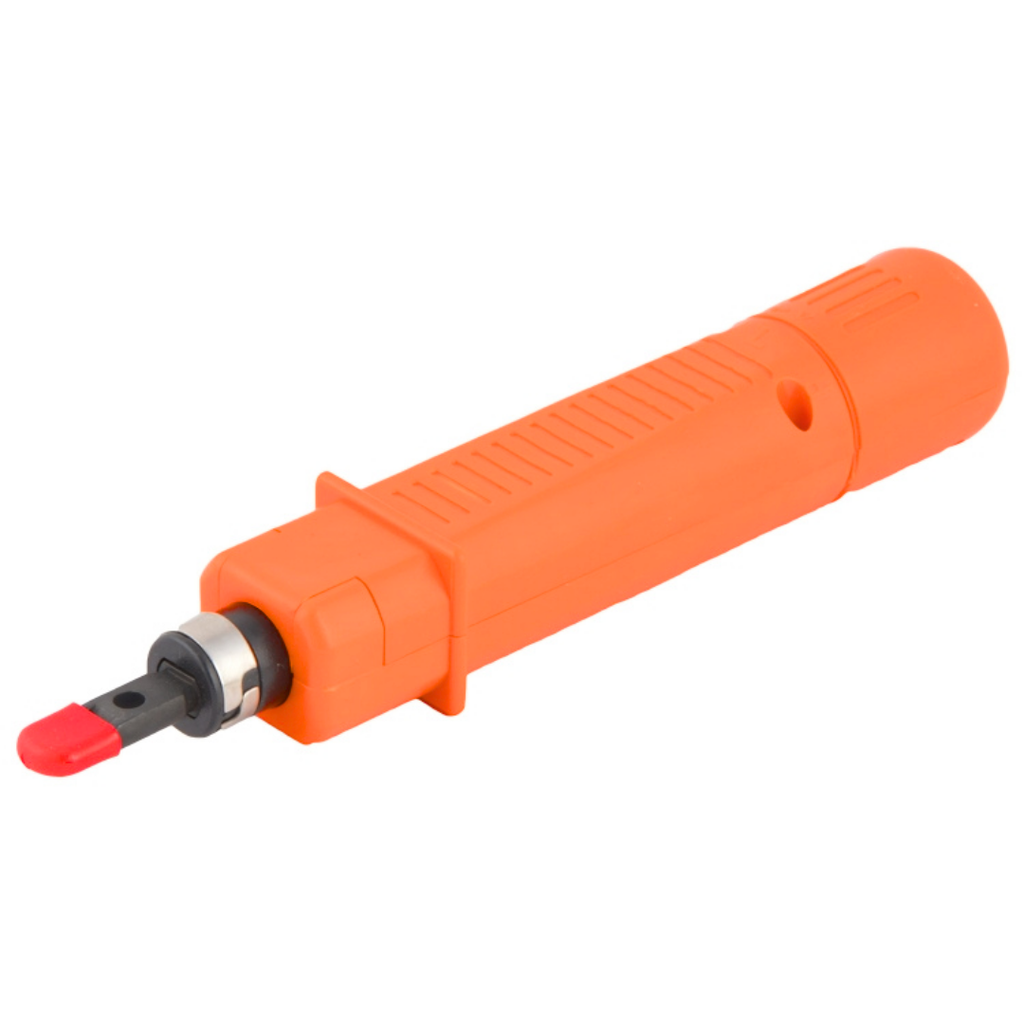

For termination of telephone and high-speed network data cables -IDC 110/88 terminal punch down tool with adjustable impact pressure control. T568A and B compliant, 110 type IDC punch down connectors
Twist handle end to H or L to adjust pressure. Rugged frame with storage compartment in the body of the tool for storing one blade
Reversible blade for either punching down and cutting or just punching down
For seating wire into terminal block or cut off wire end after terminated
For 110 type IDC punch down connectors
The Impact Punch Down Tool frame is divide into main body with impact mechanism inside and a turntable body

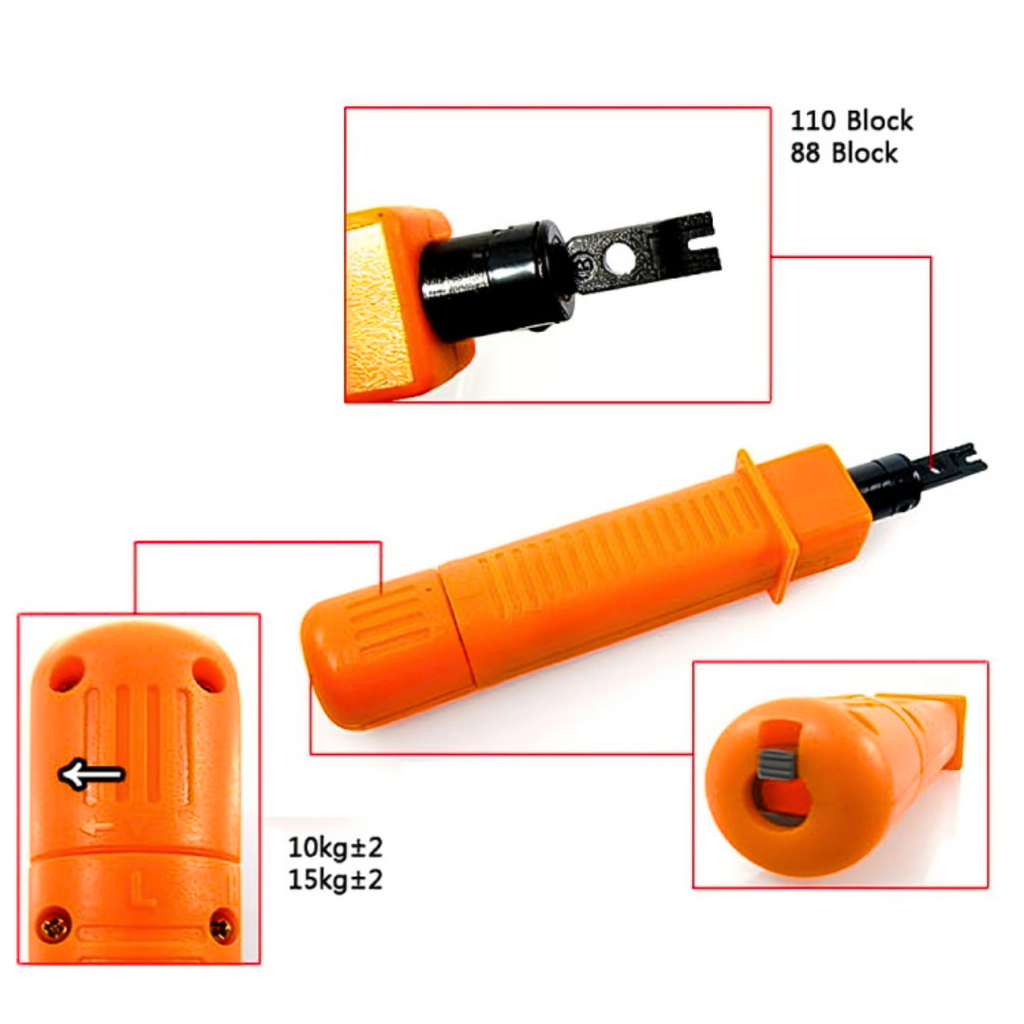

With adjustable impact pressure control, turn the turntable part in clockwise direction to H indicated pressured H = 15 ± 2kgs for inserting larger wire into terminal block, or L indicated pressure L=10 ± 2kgs for standard wire. The turntable part is irreversible
Regulated force (L=10kG, H=15kg)
