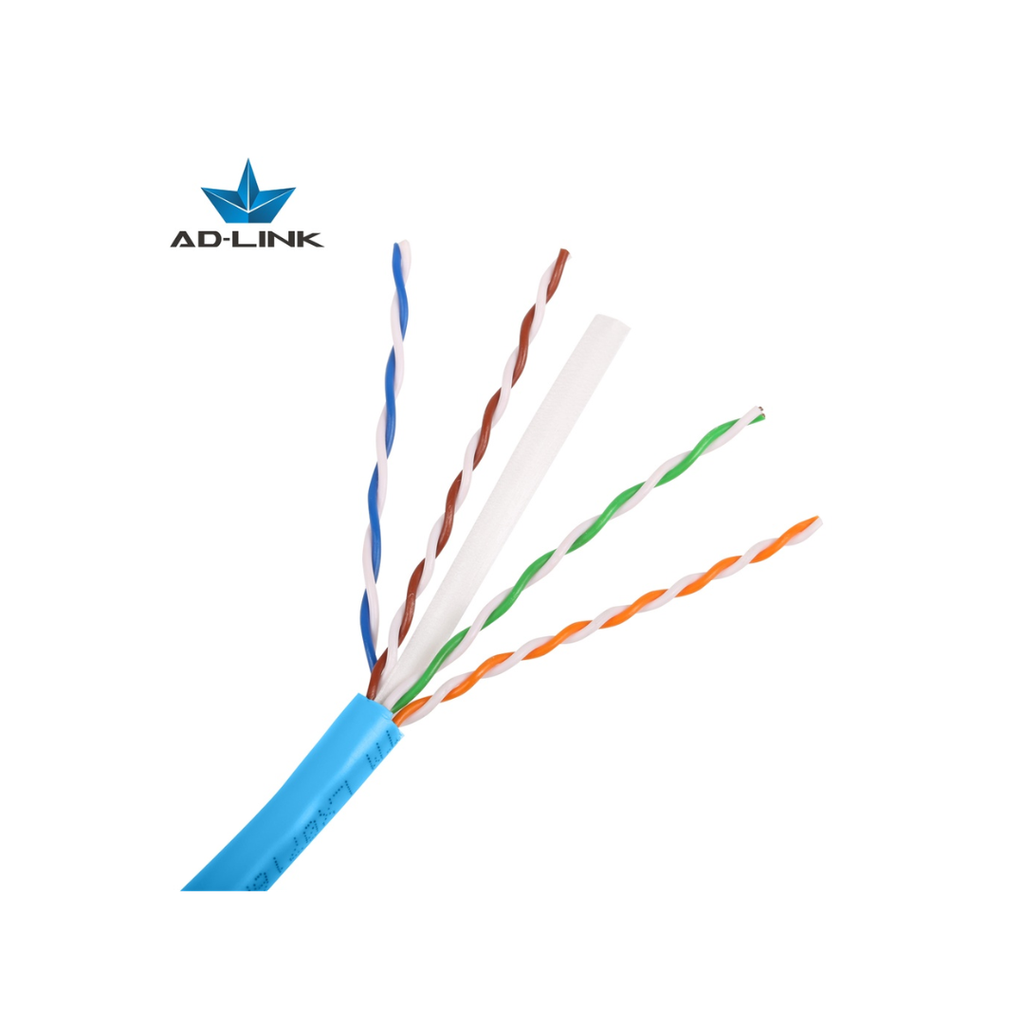

AD-LINK UTP Cable Cat6 Indoor Full Copper Roll 305M
Categories :
UTP Cables
100% original guarantee
Return within 30days
Free delivery on all orders
Specifications:
Inner Conductor thickness  :  0.56mm Pure Copper
Conductor size             : 23AWG
Conductor Material        : BC
No. of Conductor          : 4P
Insulator Material         : HDPE
Jacket                    : ROSH PVC
Shield                    : Unshielded twisted pairs
Filler                     : PE CROSS
Insulation Thickness       : 0.2mm
Jacket Thickness          : Optional
Stretching Resistance      : (max) 400N
Impedance                : 100±15%î© at 1~250MHz
Pc Resistance              : 10000Mî©.km
Working Capacitance       : 5.4nf/100m
Insulation Resistance      :  72%
Operating Temperature    : ~40Â ºC – +70 Â ºC
PVC Jacket Color          : Optional
| Brand | AD-LINK |
