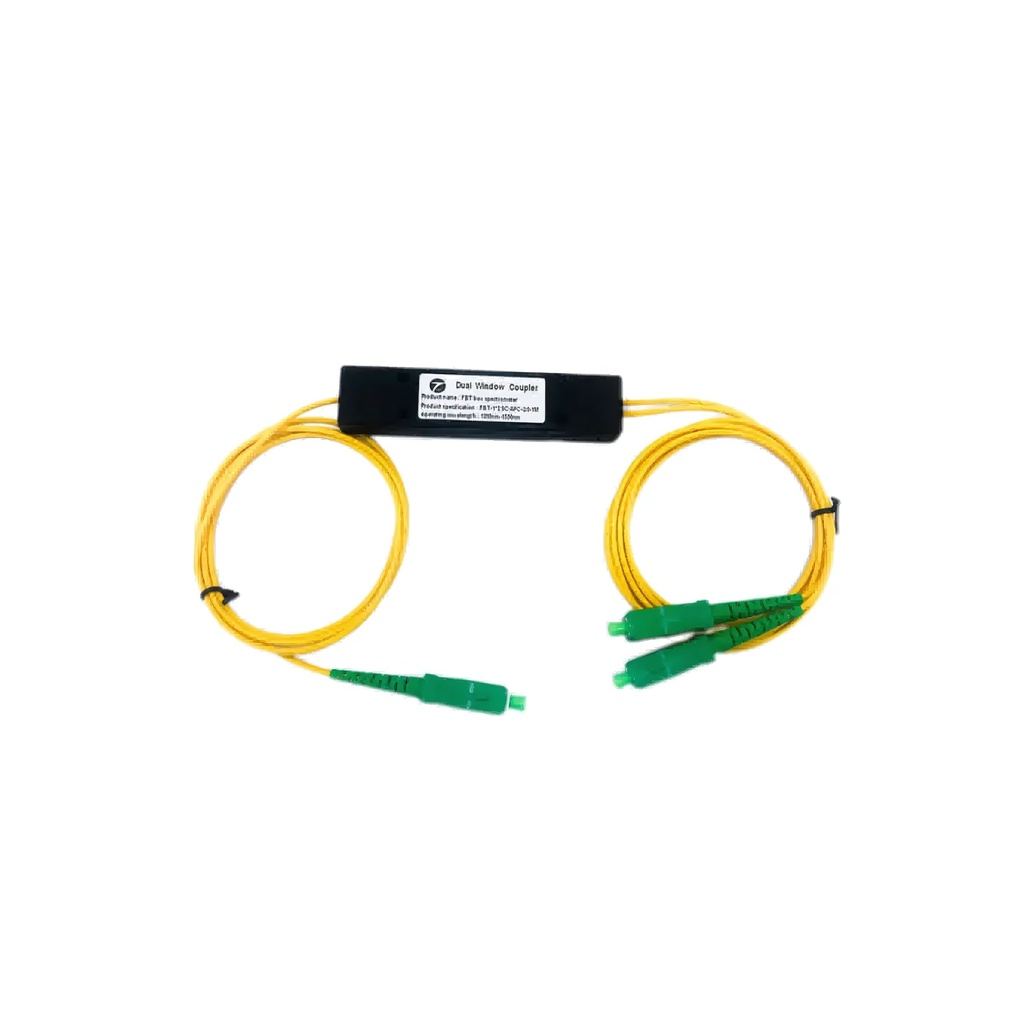

Unionfiber FTB Splitte, 3.0MM, SC/APC 1M (15/85)
Description:
FBT splitter is a type of optical power management device that is fabricated using Fused Biconical Tape technology.
It features small size, high reliability, cheap cost and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.
Product Features:
Low Insertion loss
Low PDL
Excellent channel-to-channel uniformity
High return loss and Good repeatability
Wide wavelength range
Applications:
LAN, WAN and Metro Networks
FTTH project & FTTX Deployments
CATV System
GPON, UPON
Fiber Optic Test Equipment
Data-base Transmit Broadband Net
Compliance:
Telcordia GR-1209-CORE-2001
Telcordia GR-1221-CORE-1999
YD-T2000.1-2009
RoHS
Product Specifications
| Attribute | Description |
|---|---|
| Type | FBT (Fused Biconical Taper) Splitter |
| Configuration | 1×2 Split Ratio: 15% / 85% |
| Connector Type | SC/APC (Angled Physical Contact) |
| Cable Diameter | 3.0mm simplex fiber |
| Fiber Type | Singlemode G657A1 or G652D |
| Cable Length | 1 meter input / 1 meter output |
| Operating Wavelength | 1260–1650nm (dual window) |
| Insertion Loss | ≤ 4.2 dB (typical for 15/85 split) |
| Return Loss | ≥ 55 dB |
| PDL (Polarization) | ≤ 0.2 dB |
| Temperature Range | –40°C to +85°C |
| Housing Type | Mini steel tube or ABS box (varies by supplier) |
| Compliance | Telcordia GR-1209/1221, RoHS, CE, ISO9001 |
