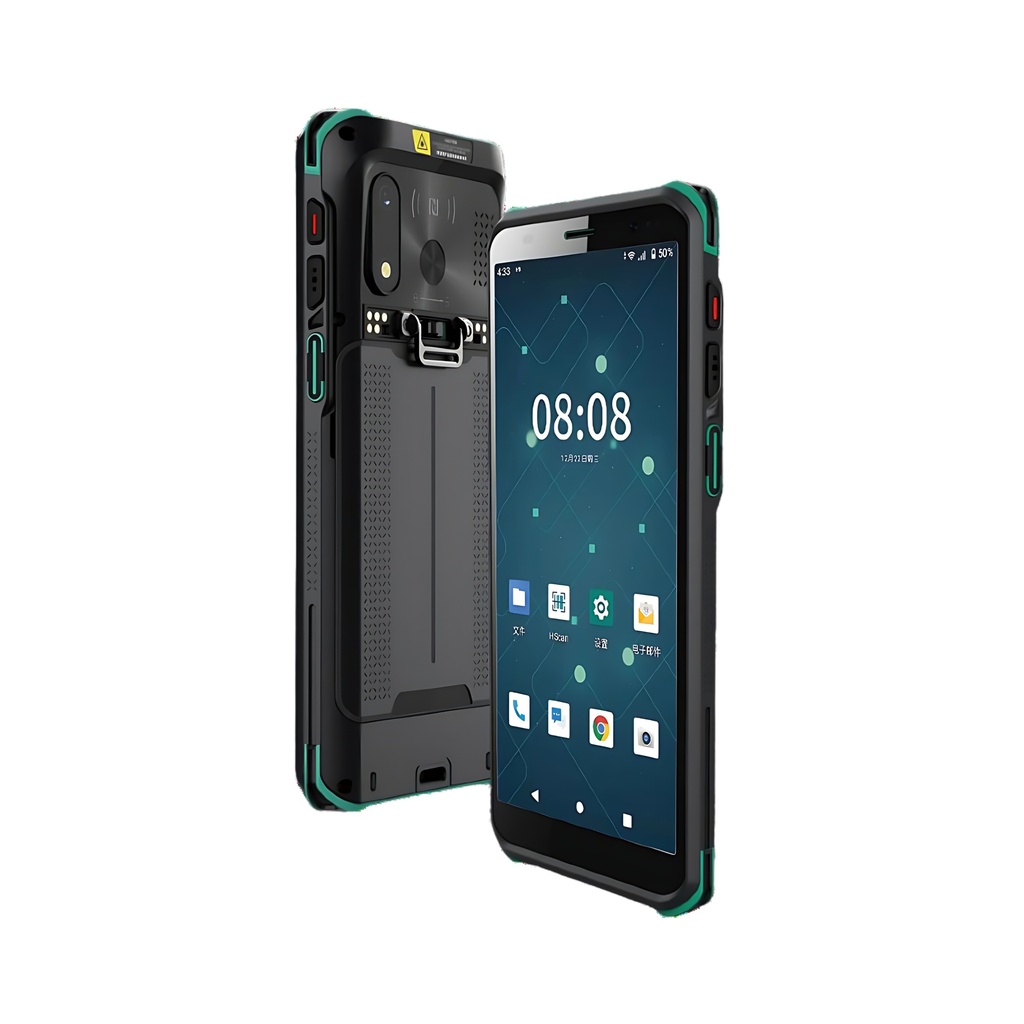

HENEX Mobile Data Collector 5.93in 2160*1080 Model: H6
| Model No | H6 |
| Physical Characteristics | |
| Dimensions | 177.6(L)×77.2(W)×45(H)mm 7.0(H)×3.0(W)×1.77 (T)inch |
| Weight | 580 g / 20.45 oz.（with battery） |
| Screen Display | 6inch，2160(H)×1080(W) FHD+，industrial-grade IPS display |
| Imager Window | Corning® Gorilla® Glass |
| Touch Panel | Corning® Gorilla® Glass Capacitive touch panel,Support Water&Gloves Touch Mode |
| Backlight | 450 NITS, LED backlight |
| Battery | Rechargeable /removeable battery/removeable battery3.85V/10000mAh，QC3.0 fast charge（2.8A），charge time<5h |
| Expansion Slot | MicroSD card，support SDHC、SDXC，256GB(max) |
| Expansion Ports | Bottom POGO PIN: USB 2.0，5V/3A charge port |
| SIM card slot | 2 x Nano SIM 1 x e-SIM(option) |
| SAM card slot | 1 x PSAM + 1x Micro PSAM（option） |
| Notifications | Audible tone; Multi-color LEDs; Vibration |
| Network Connections | 2G/3G/4G ,Wi-Fi, Blue tooth |
| Operate System | Android 11.0 |
| Voice and Audio | Speaker, Receiver,Dual Mic,USB Type-C headset supp |
| Keypad | On-screen keypad and enterprise keyboard |
| Buttons | Programmable; Scan on each side; volume up/down; power; push-to-talk (PTT) |
| Interface Ports | Bottom USB 2.0 OTG - host/client (Type-C) |
| Performance Characteristics | |
| CPU | Qualcomm Snapdragon, 8Core, 2.0GHz |
| RAM | 4GB LPDDR4X（6GB option） |
| Flash | 64GB eMMC 5.1（128GB option） |
| Sealing | IP68 |
| Drop Specification | 1.2 m (Concrete Surface) |
| Tumble Specification | 300times from 1.6 ft./0.5 m droped |
| Light Sensor | Automatically adjusts display backlight brightness |
| Magnetometer | Support electronic compass |
| Motion sensor | 6-axis gyroscope, 3-axis accelerometer |
| Proximity sensor | Automatically disable touchscreen and turn off display display in handset mode (voice call) |
| Data Capture | |
| Scaning | 2D Standard range omnidirectional imager |
| Camera | Front 5 MP fixed focus; f/2.4 aperture Rear 16 MP auto focus; f/1.85 aperture; Flash LED |
| NFC | Support ISO14443A/B、ISO15693、MIFARE、FeliCa，Support card reading, point-to-point, card simulation |
| Positioning System (GPS) | GPS L1 with A-GPS: Glonass; BeiDou; Galileo |
| RFID | China Frequancy : 920-925 MHzUSA Frequancy :902-928 MHz Europe Frequancy: 865-868 MHz（ETSI EN 302 208） Other Frequancy : Other multinational frequency standards (customizable) Engine: SIM7100, base on Impinj Indy E710 chips SIM3100, base on Impinj Indy E310 chips Protocol standard: EPC C1 GEN2 / ISO18000-6C Antenna parameters: ceramic antenna（3 dBi）/ circular polarized antenna（5dBi） Sensitivity: -87dBM（SIM7100），-75dBM（SIM3100） Power : 2 W（33 dBm，+5 dBm ~ +33 dBm，SIM3100/SIM7100） Reading distance: ≥ 15M（33dBm，Circular polarization, open outdoor environment, white card label） Group read rate: ≥ 900 tags/s（SIM7100）;≥ 300 tags/s（SLR3100） |
| Accessories | Power adapter×1，USB Type-C×1，rechargeable battery×1 |
