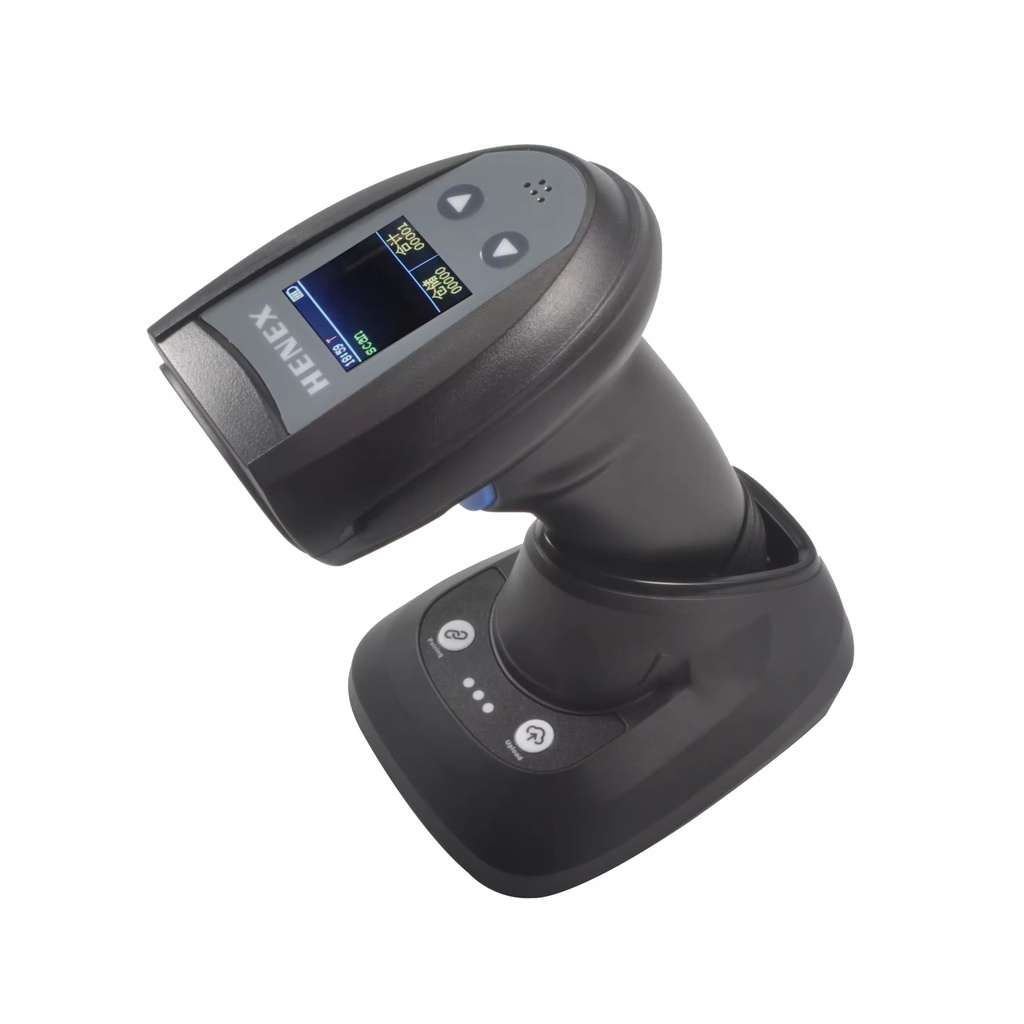

HENEX Wireless Barcode Scanner with Cradle 1D/2D/QR 1280*800pixels Model: HC-5208RCS
Model Number :
HC-5208RCSCategories :
Barcode & QR Scanners
100% original guarantee
Return within 30days
Free delivery on all orders
HENEX Wireless Barcode Scanner with Cradle 1D/2D/QR 1280*800pixels Model: HC-5208RCS
| Model No. | HC-5208RCS |
| Features | ● 1MP image(1280*800pixel), frame rate up to 90fps |
| ● 1.4" LCD display, support price checking function. | |
| ● with Charging cradle, support 2.4g auto pair and upload data | |
| ● 3-in -1 transmission: Cradle +Bluetooth+Type-B Cable | |
| ● Can read all 1D/2D/Dotcode barcode on the screen and paper | |
| ● Support OCR ( Passport, ID card,driving license card etc.) | |
| ● Support double firmware upgrade online: wireless and decoding. | |
| ● Strong decode ability to read difficult barcodes (blurred, wrinkled, fuzzy, low contrast,high density) | |
| ● Large 2000mAh battery, 60days standby | |
| ● 2m drop resistance, use original imported ABS material, IP54 waterproof | |
| Operation Parameter | |
| Image Sensor | CMOS |
| Image(Pixels) | 1280 pixels(H)*800 pixels(v) |
| Light Source | Aiming: 617 nm LED; illumination:4500K LED |
| Frame Rate | 90fps |
| Depth of Field | 40-200mm@UPC/EAN13mil PCS=90%; 20-250mm@QR 20mil PCS=100% |
| Scan Angle | Elevation angle 65°/Tilt angle 30°/Declination 55° |
| Field of view | 34° horizontal, 28° vertical |
| Scan Mode | trigger,instant mode |
| Firmware update | Decoder and wireless update online |
| Minimum Resolution | ≥ 4mil (code39) |
| Print Contrast | ≥ 25% |
| Visual Indicator | Blue LED Light,Red charge light, Buzzer and vibration |
| Interfaces | USB-TypeB, RS-232, 2.4G, blue BLE4.0(Optional) , Virtual serial Port |
| Transmission Mode | USB-typeB, 2.4G, Bluetooth BLE4.0(Optional) |
| Transmission Range | 2.4G: 100meters, Bluetooth:40meters ( (on open air)) |
| Memory | Up to 512000bits (38000 EAN 13 codes) |
| Paired Mode | one to one, or one to more (Optional) |
| Beeper Operation | Programmable tone & Volume |
| Decoding Capability | 2D： QR Code, Data Matrix, PDF417,Aztec, Hanxin code, OCR code, Maxicode,etc. |
| 1D： UPC/EAN/JAN,UPC-A & UPC-E,EAN-8 & EAN-13, JAN-8 &JAN-13, ISBN/ISSN, Code 39 (with full ASCII), Codabar (NW7), Code 128 & EAN 128,Code 93,Interleaved 2 of 5 (ITF),Addendum 2 of 5 IATA Code,MSI/Plessy, China Postal Code,Code 32 (Italian Pharmacode),RSS 14,RSS Limited, RSS Expanded. | |
| Physical Parameter | |
| Dimension H x W x L | Scanner:175mm*66mm*90mm(L*W * H) Cradle:122mm*94mm*75mm(L*W*H) |
| Package box size | 210mm*73mm*95mm(L*W*H) |
| Weight | Scanner:202g Cradle:194g |
| Cable | USB-Type-B charge cable (1.5m) |
| Connector type | Charge cable with USB2.0- Type B ( Printer cable) |
| Case Material | ABS+PC |
| Power Parameter | |
| Input Voltage | 5VDC±10% |
| Working corrent | 1000mA |
| Battery Parameters | |
| Battery Capacity | 2000mAh |
| Charge Mode | Cable chage directly or automatic charge in cradle |
| Laser Class | CE EN55022 B, FCC Part 15 Class B, VCCI, BSMI |
| Environmental Parameters | |
| Operating Temperature | "-20℃~+60℃ |
| Working Humidity | 5% to 95% relative humidity, non-condensing |
| Storage Temperature | "-40℃~+70℃ |
| Light Levels | 0~100,000Lux(Daylight) |
| Drop Durability | Designed to withstand 2 Meters drop |
| Certificate | CE,FCC,ROHS,LVD, EMC, COC, BIS etc. |
| Brand | HENEX |
