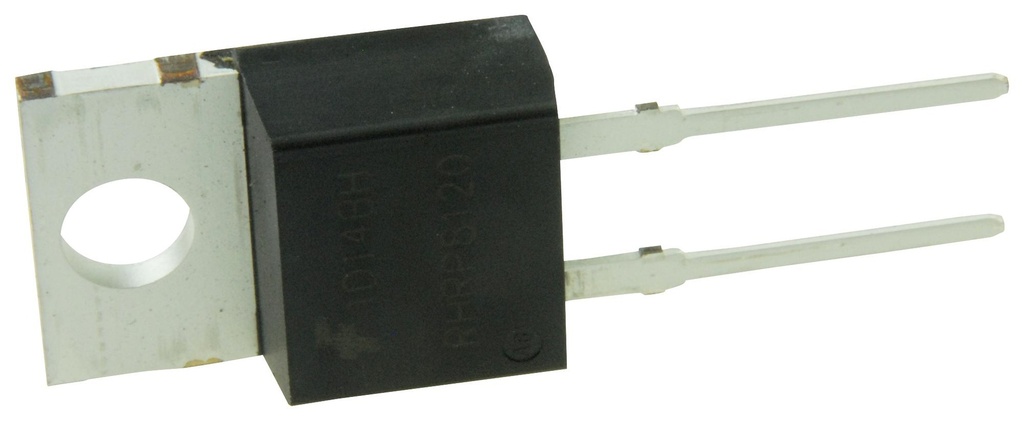

Hyperfast Diodes RHRP8120 TO-220AC®

The RHRP8120 is a hyperfast, low-forward voltage diode designed for use in high-speed switching applications. The device is housed in a TO-220AC package and has a maximum forward current of 12 A. The RHRP8120 is ideal for use in applications such as power supplies, inverters, and converters.

**Specification**

* Maximum forward current: 12 A

* Maximum reverse voltage: 600 V

* Forward voltage at 10 A: 0.95 V

* Reverse leakage current at 500 V: 10 µA

* Capacitance at 100 kHz: 45 pF

* Switching time (trr): 10 ns
