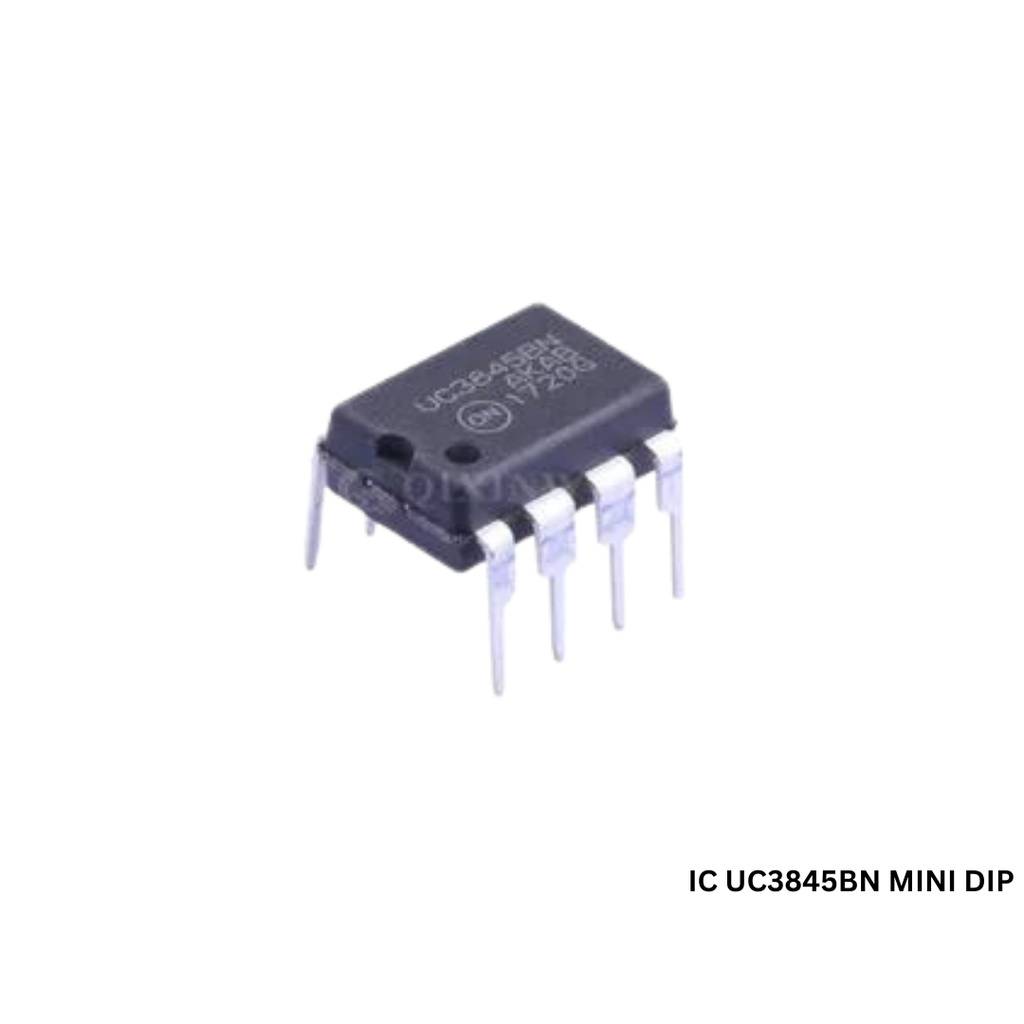

IC UC 3845BN MINI DIP ®

The UC3845BN is a high-performance, fixed-frequency, current-mode controller. It is specifically designed for switching power supplies. The UC3845BN provides all the necessary functions to implement a complete switching power supply.

**Specification:**

- Brand: Texas Instruments

- Part Number: UC3845BN

- Package: MINI DIP®

- Lead Count: 8

- Operating Temperature Range: 0°C to 70°C

**Features:**

- Fixed-frequency operation

- Current-mode control

- Internal oscillator

- Overcurrent protection

- Short-circuit protection

- Adjustable duty cycle

- Low power consumption

**Benefits:**

- Reduced component count

- Improved efficiency

- Increased reliability

- Simplified design

**Application:**

- Switching Power Supplies

- AC/DC Converters

- DC/DC Converters
