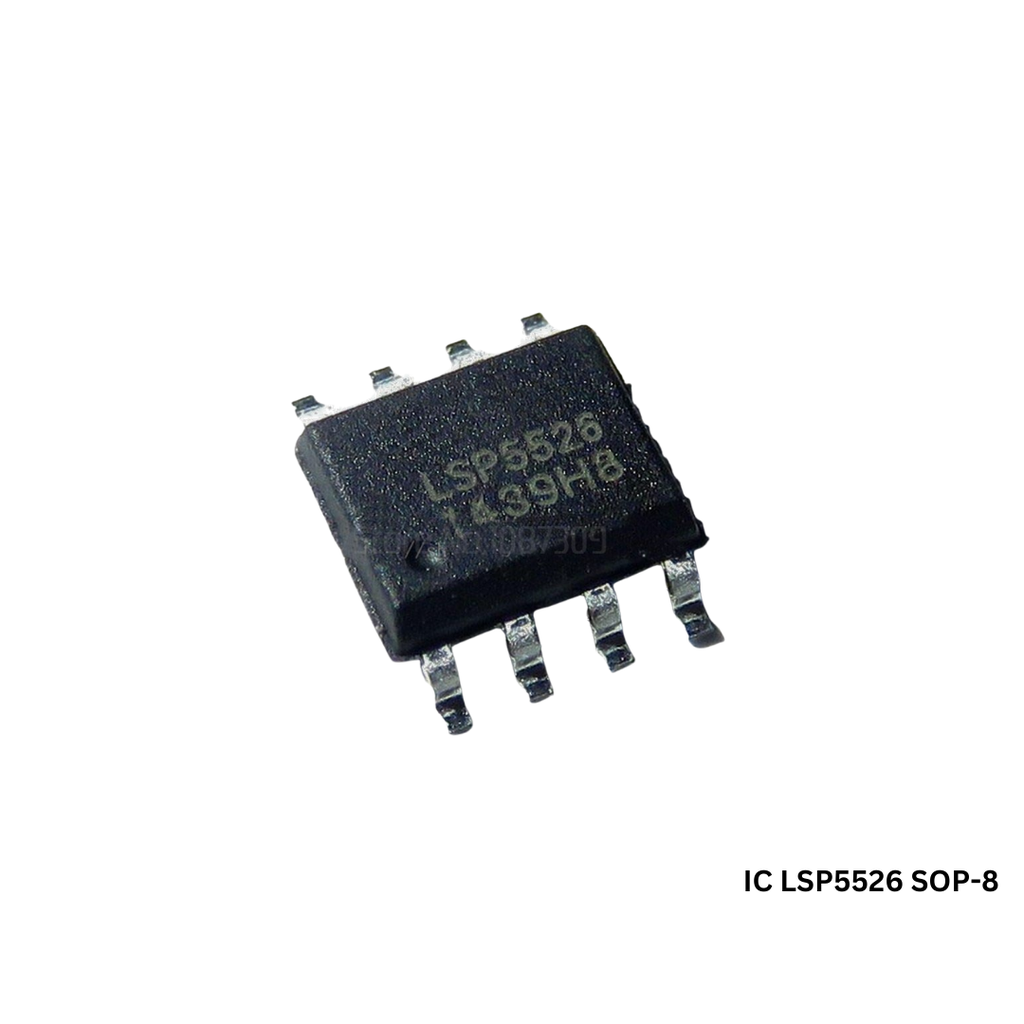

IC LSP5526 SOP-8

The LSP5526 is a monolithic integrated circuit designed to provide protection and flexibility for use in ac/dc power supplies. A hybrid construction is used to provide the high voltage capability of a power transistor with the sensitive control required for constant current operation. The LSP5526 provides a low-cost method of obtaining high-accuracy, tight regulation of output current in a flyback, forward converter, or other switching power supply. The device is packaged in an 8-pin SOP package.

**Specification:**

* Input voltage: 100 to 240 Vac

* Output voltage: 5 to 40 Vdc

* Output current: 0.5 to 5.0 A

* Switching frequency: 50 to 200 kHz

* Operating temperature: -40 to 85°C

* Package: 8-pin SOP

**Features:**

* Precision current regulation

* Low dropout voltage

* Wide input voltage range

* High efficiency

* Short-circuit protection

* Overload protection

* Thermal protection

**Benefit:**

* The LSP5526 provides accurate and reliable output current regulation.

* The LSP5526 has a low dropout voltage, which means that it can operate at low input voltages.

* The LSP5526 has a wide input voltage range, which makes it suitable for use in a variety of applications.

* The LSP5526 has a high efficiency, which means that it wastes less power.

* The LSP5526 has short-circuit protection, which prevents damage to the device in the event of a short circuit.

* The LSP5526 has overload protection, which prevents damage to the device in the event of an overload.

* The LSP5526 has thermal protection, which prevents damage to the device in the event of overheating.

**Application:**

The LSP5526 is suitable for use in a variety of applications, including:

* Power supplies

* Chargers

* Inverters

* Motor controllers

* Lighting
