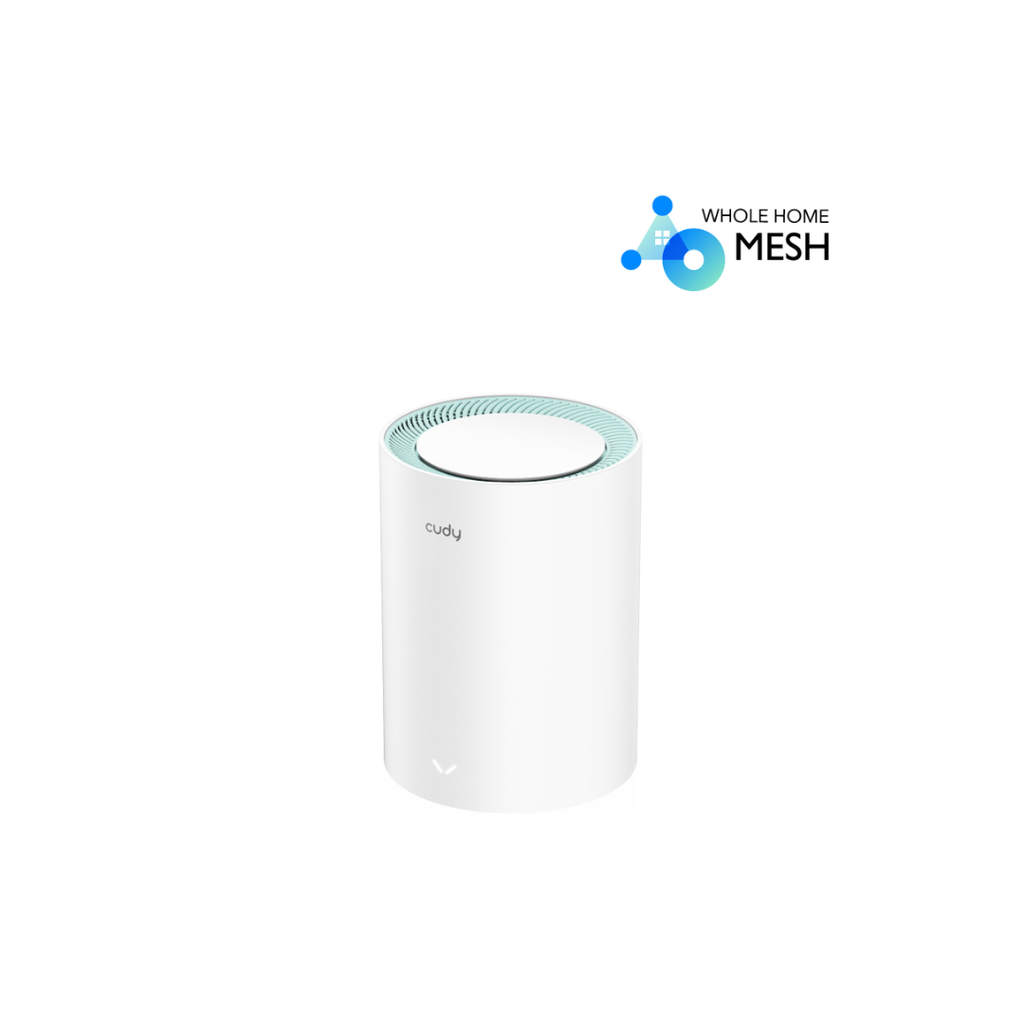

Cudy AC1200 Dual Band Whole Home Wi-Fi Mesh System, Model: M1300 1-pack

Price:

$ 29.70
  2. Shop
  3. Cudy AC1200 Dual Band Whole Home Wi-Fi Mesh System, Model: M1300 1-pack
Cudy AC1200 Dual Band Whole Home Wi-Fi Mesh System, Model: M1200 1-pack
Cudy AC1200 Dual Band Whole Home Wi-Fi Mesh System, Model: M1200 1-pack
$ 21.60
$ 21.60
POTRIC Terminal Block MRK-4mm TR401 Grey
POTRIC Terminal Block MRK-4mm TR401 Grey
$ 0.22
$ 0.22

Cudy AC1200 Dual Band Whole Home Wi-Fi Mesh System, Model: M1300 1-pack

https://danoun.odoo.com/web/image/product.template/1686/image_1920?unique=92adada

$ 29.70 29.7 USD $ 29.70

$ 25.00

Not Available For Sale

  • Brand

This combination does not exist.

Contact Us
Cudy
Cudy
Model Number :
M1300
Categories :
Access Points , New Arrivals
Tags :
Share :
Terms and Conditions :
100% original guarantee
Return within 30days
Free delivery on all orders

Cudy AC1200 Dual Band Whole Home Wi-Fi Mesh System, Model: M1300 1-pack

● AC1200 Mesh Wi-Fi Solution

● 867Mbps on 5GHz and 300Mbps on 2.4GHz

● Seamless Roaming, Whole Home Coverage

● 2 Gigabit Ethernet Ports

● Compatible with 15 more DDNS providers

● PPTP/L2TP/OpenVPN/WireGuard/IPSec/Zerotier VPN


Specifications:

Hardware Specs

Model VersionM1300 1.0
CPUCPU Details880 MHz Dual-Core, MIPS1004Kc
Memory/StroageFlash/ROM16 MB (128 Mbit) NOR
DDR/RAM128 MB (1 Gbit) DDR3
Wireless5 GHz Wi-Fi Speed867 Mbps
2.4 GHz Wi-Fi Speed300 Mbps
5 GHz Wi-Fi Streams2T2R (2×2 MIMO)
2.4 GHz Wi-Fi Streams2T2R (2×2 MIMO)
Wi-Fi Antennas4× Internal
5 GHz Anntenna Gain Max6.04dBi
2.4 GHz Antenna Gain Max4.22dBi
FEM or PA/LNA
  • 5 GHz: 2× Internal
  • 2.4 GHz: 2× Internal
Range PerformanceMax: 120 m (394 ft)
Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions.
Wall PerformanceTwo wooden walls with thickness < 3.8 cm (1.5'')
One concrete wall with thickness < 20 cm (7'')
Wi-Fi Transmission Power
  • CE:
    <20 dBm (2.4 GHz)
    <23 dBm (5.15 GHz ~ 5.35 GHz)
  • FCC:
    <24 dBm (5.25 GHz ~ 5.35 GHz & 5.47 GHz ~ 5.725 GHz)
    <30 dBm (2.4 GHz & 5.15 GHz ~ 5.25 GHz)
InterfacesGigabit RJ45 Ports2
Ethernet NotesPort 1 as default WAN port, both as LAN ports on Mesh satellite units
LED
  • System
  • Speed/Link/ACT of Each Ethernet Port
Physical Buttons
  • WPS Button
  • Reset Button
Power InputDC Jack
PowerPower MethodsDC
DC12V 1A
Power AdapterInput: 100 ~ 240 V, 50/60 Hz AC
Output: 12V 1A DC
ReliabilityEnvironment
  • Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
  • Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
  • Humidity: 10% ~ 90% non-condensing
  • Storage Humidity: 5% ~ 95% non-condensing
MechanicalInstallation
  • Desktop
  • Wall-Mounting
DimensionΦ110×154.5 mm
Φ4.33×6.08 inches
Product Weight,
Package Content
  • Main Product
  • Power Adapter
  • Ethernet Cable
  • Installation Guide
Ordering InformaitonRetail Package Weight,
Retail Package Dimension1-Pack:
145×130×265 mm
5.71×5.12×10.43 inches,2-Pack:
330×130×265 mm
12.99×5.12×10.43 inches,3-Pack:
415×140×248 mm
16.34×5.51×9.76 inches
Units per Carton
  • 1-Pack: 16
  • 2-Pack: 8
  • 3-Pack: 4
Carton Dimension1-Pack: 57×56×26 cm,2-Pack: 55×54.5×35.3 cm,3-Pack: 53.6×40×28.7 cm


Software Specs

Model VersionM1300 1.0
WirelessWi-Fi StandardsWi-Fi 5
Max Wi-Fi Modulation256-QAM
Wi-Fi EfficiencyMU-MIMO
Wi-Fi Efficiency NoteMU-MIMO available on 5 GHz
Max Capacity128
Recommended Client Upper Limit50
Max Wi-Fi Channel Width80 MHz
Wi-Fi SecurityWPA-PSK (WPA/WPA2)
Guest Network2.4 GHz, 5 GHz
WPStrue
GeneralOperation Modes
  • Wi-Fi Router
  • Access Point
  • Range Extender
  • WISP
  • Client
MeshCudy Mesh
Mesh Backhaul
  • Wireless Backhaul
  • Wired Backhaul
Multi-Band Backhaultrue
WAN Mode
  • DHCP
  • Static IP
  • PPPOE
NetworkQoSPer-User Rate Limiting
DHCP
  • Address Reservation
  • DHCP Client List
  • Server
IP VersionsIPv4/IPv6
IPv6 Protocols
  • Relay
  • Dynamic (SLAAC/DHCPv6)
  • Staic (Fixed IP)
  • Passthrough
  • 464XLAT
  • MAP-E
  • DS-Lite
IPTV/VLAN
  • Bridge
  • Tag VLAN
TTL Customization
  • Extend
  • Spoof
  • Custom
IGMP
  • IGMP Proxy
  • IGMP Snooping
Forwarding
  • Port Forwarding
  • Port Triggering
  • UPnP
  • DMZ
Firewall
  • SPI Firewall
  • DoS Protection
  • Block PING
Application Layer Gateway
  • IPSec Passthrough
  • L2TP Passthrough
  • PPTP Passthrough
  • FTP Passthrough
  • TFTP Passthrough
  • H323 Passthrough
  • SIP Passthrough
  • RTSP Passthrough
UtilitiesVPN Server
  • WireGuard
  • OpenVPN
  • IPsec
  • Zerotier
  • PPTP
  • L2TP
VPN Client
  • WireGuard
  • OpenVPN
  • IPsec
  • Zerotier
  • PPTP
  • L2TP
VPN Performance
  • OpenVPN Client (UL/DL): 22 / 24.7 Mbps
  • OpenVPN Server (UL/DL): 22 / 20.9 Mbps
  • WireGuard Client (UL/DL): 142 / 233.9 Mbps
  • WireGuard Server (UL/DL): 213 / 152 Mbps
DNS Options
  • DNS over TLS
  • Manual DNS
  • Rebind Protection
  • Override Clients' DNS
DNS over TLS Providers
  • Cloudflare
  • Google
  • Quad9
  • Custom
Captive Portaltrue
Wake on LANtrue
Online Detectiontrue
Max Concurrent VPN Tunnels
  • IPSec: 20
  • PPTP/L2TP: 16
  • OpenVPN: 16
GeneralMax Concurrent Sessions25000
ManagementAll Devices Management
  • Wi-Fi Time Schedule
  • MAC Filter
  • IP/MAC Binding
Per-Devices Management
  • Intenent On/Off
  • VPN On/Off
  • Online Time Schedule
  • Device Rename
Content Management
  • Domain Filter
  • IP Filter
SystemLED Controltrue
Local Control Method
  • Config Web Page
  • App Control
Remote Control Method
  • Config Page via HTTPS
  • App Control
  • TR069/TR098/TR111/TR181
Firmware Upgrade
  • Local Update
  • App (Over the Air)
  • Online Update
Reliability
  • Timed Reboot
  • Backup and Restore
Diagnostic Tools
  • Diagnosis
  • Ping
  • Traceroute
  • NSLookup
  • System Log
Languages
  • English
  • Bengali
  • Catalan
  • Czech
  • German
  • Greek
  • Spanish
  • French
  • Hebrew
  • Croatian
  • Hungarian
  • Italian
  • Japanese
  • Khmer
  • Korean
  • Dutch
  • Norwegian
  • Polish
  • Portuguese
  • Romanian
  • Russian
  • Slovak
  • Swedish
  • Thai
  • Turkish
  • Ukrainian
  • Vietnamese
  • Simplified Chinese
  • Traditional Chinese
DashboardPanelInternet Status, Mesh Status, Devices Management, WAN Status, LAN Status, WISP Status, Wi-Fi Status, VPN Status, DHCP Server Status, System Version
ChartsMesh Topology, Internet Speed, WISP Speed, Wi-Fi Speed
