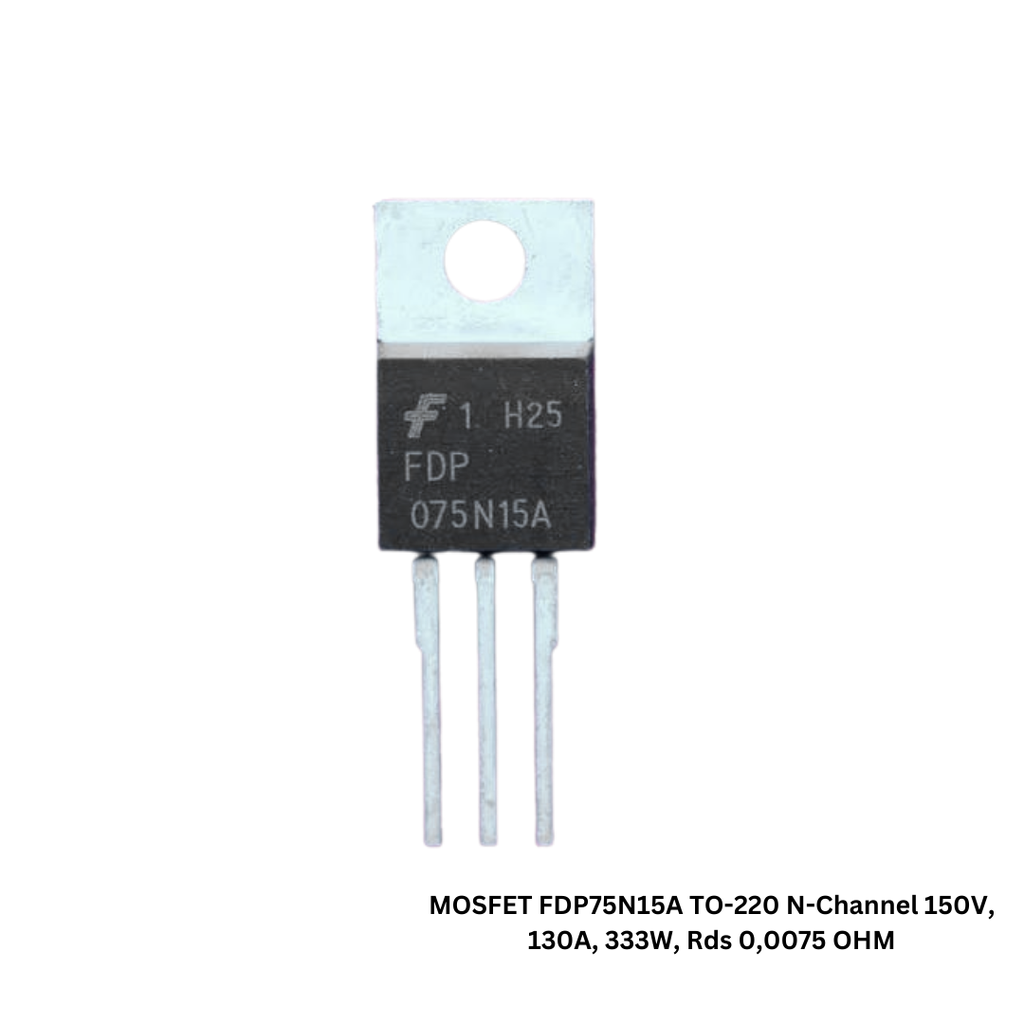

Mosfet FDP75N15A TO-220 N-Channel 150V, 130A, 333W, Rds 0,0075 OHM

The FDP75N15A is a high-performance N-channel MOSFET that offers superior performance with low on-resistance and high current capability. It is designed to handle high power and high frequency applications, making it an excellent choice for power conversion, motor control, and switching circuits.

**Specification:**

- Drain-to-Source Voltage: 150V

- Drain Current: 130A

- Power Dissipation: 333W

- On-Resistance: 0.0075 ohms

- Gate-to-Source Voltage: ±20V

- Operating Temperature Range: -55°C to 175°C

**Features:**

- Low On-Resistance for Minimized Power Losses: The FDP75N15A has a very low on-resistance, resulting in reduced power dissipation and increased efficiency. This is particularly beneficial in high-power applications where minimizing conduction losses is essential.

- High Current Handling Capability: With a maximum drain current of 130A, the FDP75N15A can handle high current loads, making it ideal for various applications where high currents are present.

- Ultra-Fast Switching: The FDP75N15A exhibits ultra-fast switching speeds, enabling it to handle high-frequency applications. The rapid switching capability reduces switching losses and EMI, improving system performance and efficiency.

- High Avalanche Energy Rating: The FDP75N15A has a high avalanche energy rating, indicating its ability to withstand high-energy transients and voltage spikes. This ensures increased robustness and reliability in harsh operating conditions.

**Benefit:**

- Improved Efficiency: The low on-resistance and ultra-fast switching characteristics of the FDP75N15A result in improved efficiency, leading to lower power consumption and reduced operating costs.

- Increased Power Density: The FDP75N15A's compact TO-220 package enables higher power density, allowing for smaller and more compact designs. This is particularly beneficial in applications where space is constrained.

- Enhanced Reliability: The high avalanche energy rating and robust construction of the FDP75N15A provide enhanced reliability, making it less susceptible to failure under demanding operating conditions. This results in longer lifespan and improved system uptime.

**Application:**

- Power Conversion: The FDP75N15A is suitable for high-power conversion applications, such as AC-to-DC converters, DC-to-DC converters, and inverters. Its low on-resistance and high current capability make it an ideal choice for these applications.

- Motor Control: The FDP75N15A is commonly used in motor control applications, where high switching frequencies and high currents are required. Its ultra-fast switching capability and robust nature make it well-suited for this application area.

- Switching Circuits: The FDP75N15A is employed in various switching circuits, such as choppers, drivers, and relays. Its fast switching speed and low on-resistance contribute to improved circuit performance and efficiency.
