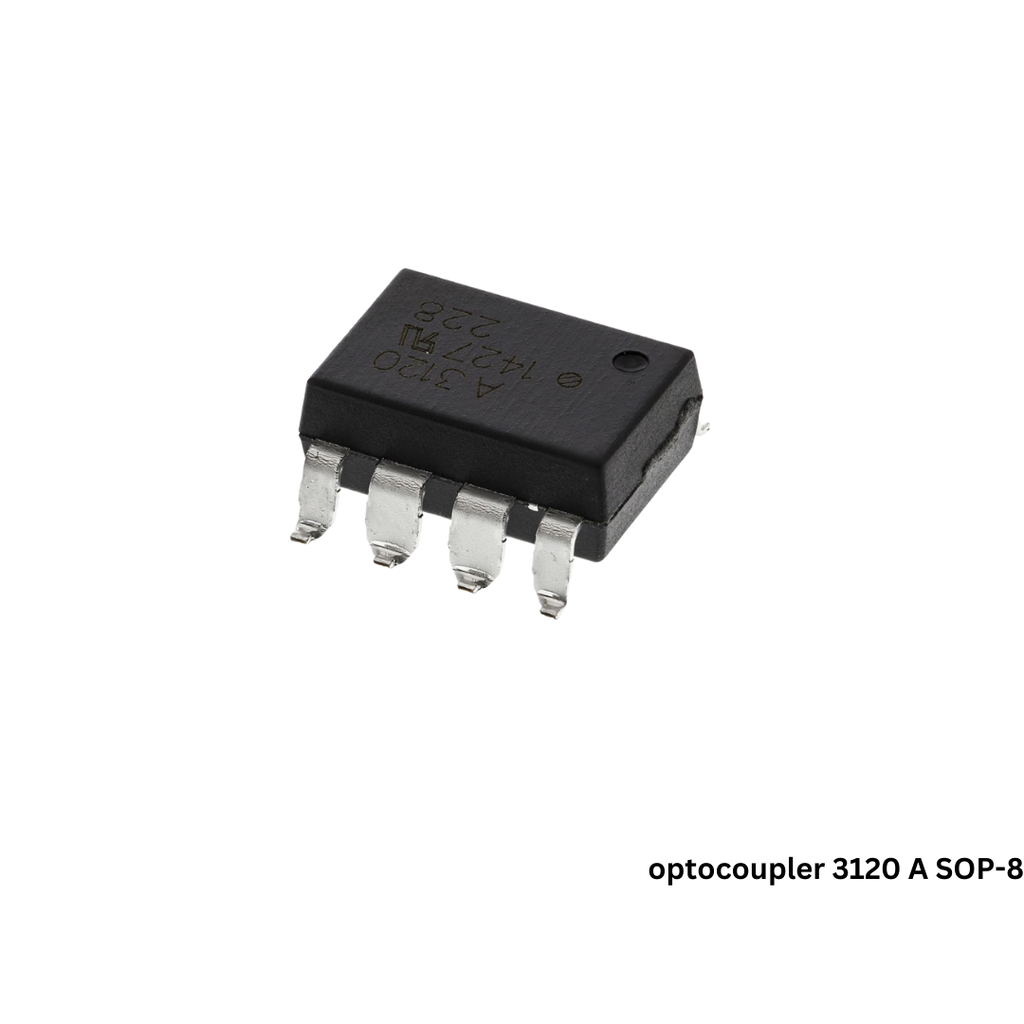

Optocoupler 3120A SOP-8®

Description:

The Optocoupler 3120A SOP-8 is a component designed to provide electrical isolation between input and output circuits. It typically consists of a light-emitting diode (LED) on the input side and a photodetector on the output side, separated by a transparent isolation barrier.

Specification:

Package: SOP-8

Model: 3120A

Features:

Electrical Isolation: Provides isolation between input and output to prevent interference.

Compact Design: SOP-8 package ensures a compact and space-efficient solution.

High-Speed Response: Suitable for applications requiring fast signal transmission.

Low Power Consumption: Efficient use of power resources.

Benefits:

Noise Immunity: Protects sensitive components from electrical noise and interference.

Safety: Ensures safety in applications where electrical isolation is crucial.

Space-Efficient: SOP-8 package is suitable for applications with limited space.

Applications:

The Optocoupler 3120A SOP-8 is commonly used in various electronic applications, including but not limited to:

Switching Power Supplies: Provides isolation between control and power circuits.

Microcontroller Interfaces: Protects microcontrollers from high-voltage components.

Signal Isolation: Used in applications where signal integrity is critical.

Data Communication Systems: Ensures data integrity in communication circuits.
