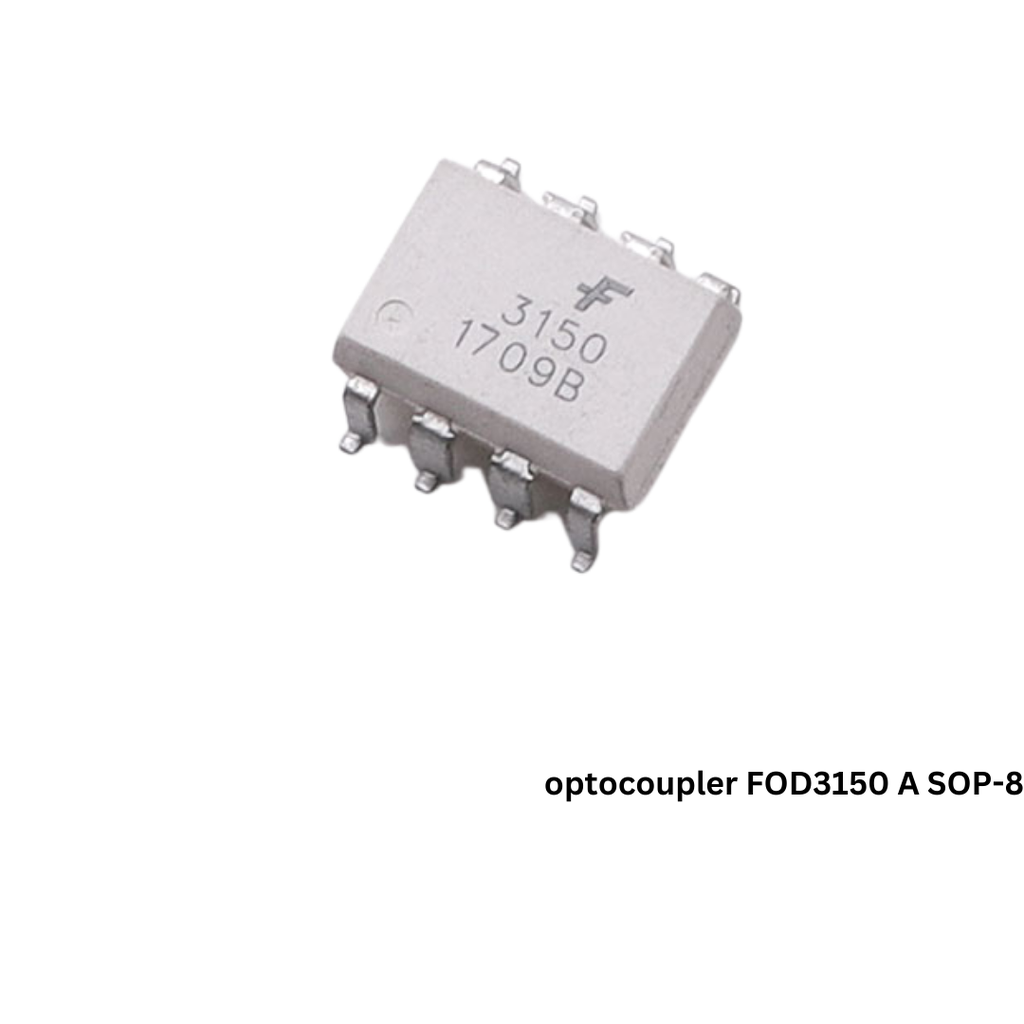

Optocoupler FOD3150A SOP-8 ®

Description

The FOD3150A is a 2.5 A Output Current Gate Drive Optocoupler,

capable of driving most 800 V / 20 A IGBTs or MOSFETs. It is ideally

suited for fast switching driving of power IGBTs and MOSFETs used

in motor control inverter applications, and high performance power

system.

It utilizes ON Semiconductor patented coplanar packaging

technology, Optoplanar®, and optimized IC design to achieve high

noise immunity, characterized by high common mode rejection.

It consists of a gallium aluminum arsenide (AlGaAs) light emitting

diode optically coupled to an integrated circuit with a high−speed

driver for push−pull MOSFET output stage.

Features

• High Noise Immunity characterized by 20 kV/s minimum Common

Mode Rejection

• Use of P−channel MOSFETs at Output Stage Enables Output Voltage

Swing close to the Supply Rail

• Wide Supply Voltage Range from 15 V to 30 V

• Fast Switching Speed

♦ 500 ns maximum Propagation Delay

♦ 300 ns maximum Pulse Width Distortion

• Under Voltage LockOut (UVLO) with Hysteresis

• Extended Industrial Temperate Range, −40°C to 100°C Temperature

Range

• Safety and Regulatory Approvals

♦ UL1577, 5000 VRMS for 1 minute

♦ DIN EN/IEC60747−5−2

• >8.0 mm Clearance and Creepage Distance (Option ‘T’)

• This is a Pb−Free Device

Applications

• Industrial Inverter

• Uninterruptible Power Supply

• Induction Heating

• Isolated IGBT/Power MOSFET Gate Drive
