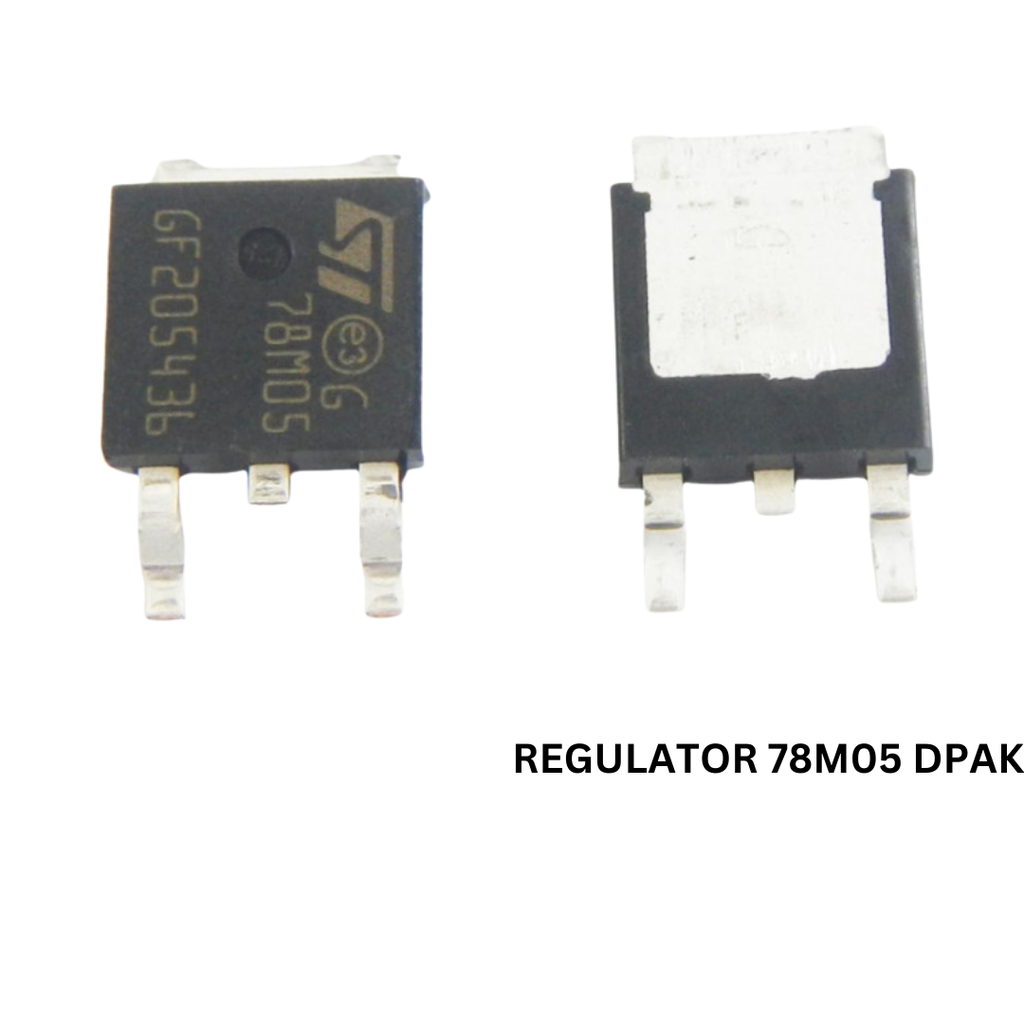

Regulator 78M05 DPAK ®

Description:

The Regulator 78M05 DPAK is a type of voltage regulator that provides a regulated output voltage of +5V.

SPECIFICATION:

- Package type: DPAK (Plastic Package)

- Output voltage: +5V

- Maximum output current: 500mA

- Input voltage range: 7V to 40V

- Dropout voltage: typically 2V

- Ripple rejection: 66dB

- Thermal shutdown protection

FEATURES:

- Low dropout voltage

- High ripple rejection

- Thermal shutdown protection

- Overcurrent protection

- Short-circuit protection

BENEFITS:

- Provides a stable and regulated +5V output voltage

- Suitable for various electronic devices that require a +5V power supply

- Protects the regulator from overheating and excessive current flow

- Protects the circuit from overcurrent and short-circuit conditions

APPLICATIONS:

- Powering microcontrollers, microprocessors, and other digital ICs

- Powering LEDs and other low-power electronic components

- Powering sensors and communication modules

- Powering automotive and industrial electronics

Overall, the Regulator 78M05 DPAK is a reliable and versatile voltage regulator that provides a regulated +5V output voltage for a wide range of applications. Its low dropout voltage, high ripple rejection, and various protection features make it ideal for powering sensitive electronic devices.
