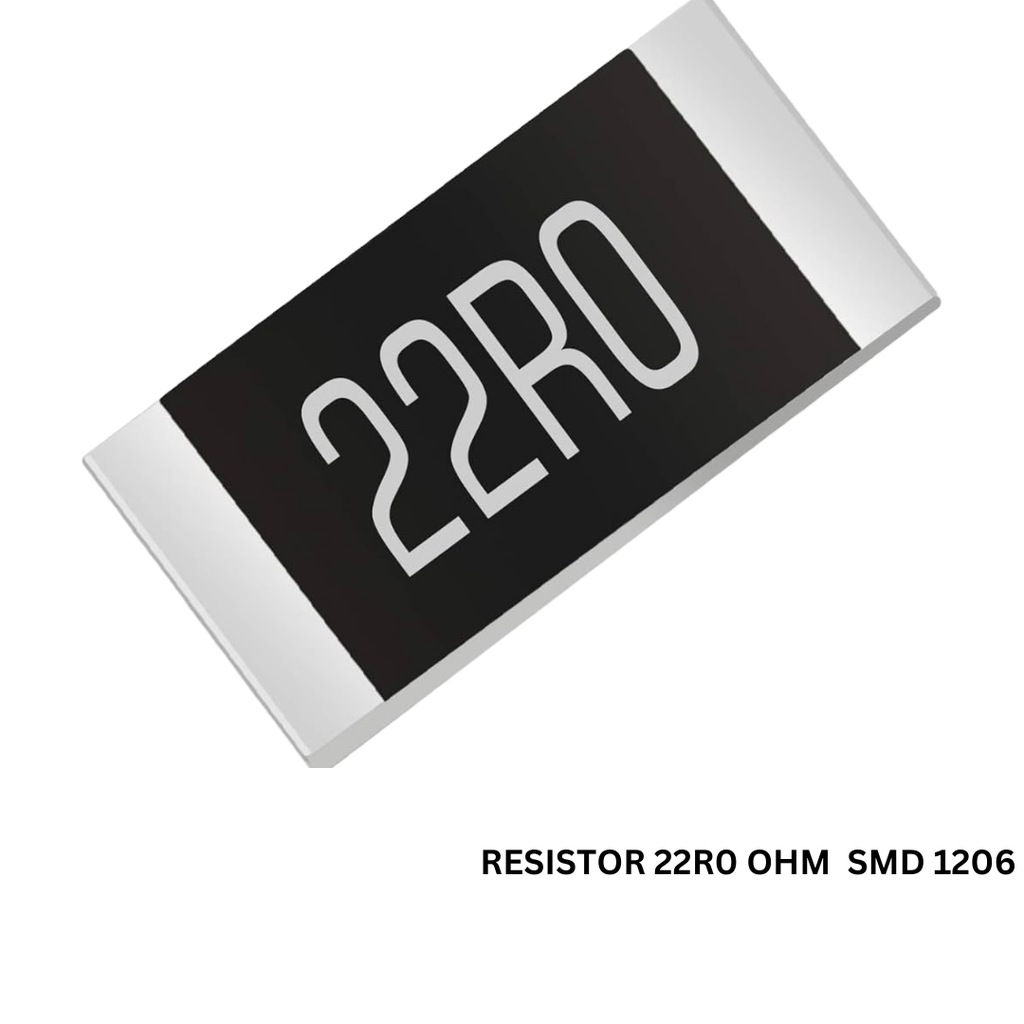

Resistor 22R0 SMD-1206 ®

**Description**

* Resistor 22R0 SMD-1206 is a surface-mount technology (SMT) resistor with a resistance value of 22 ohms and a tolerance of 1%.

* It has a compact 1206 package size, making it ideal for use in high-density printed circuit boards (PCBs).

* The resistor is constructed using a thick film resistive element, which provides excellent stability and reliability.

**Specifications**

* Resistance: 22R0 (22 ohms)

* Tolerance: 1%

* Package Size: 1206 (3.2mm x 1.6mm)

* Power Rating: 0.1W

* Operating Temperature Range: -55°C to 125°C

**Features**

* High Precision: The resistor offers a tolerance of 1%, ensuring accurate resistance values.

* Compact Size: The 1206 package size makes it suitable for space-constrained applications.

* Stable Performance: The thick film resistive element provides excellent stability and reliability over a wide range of operating conditions.

* Low Cost: SMT resistors are generally more cost-effective compared to through-hole resistors.

**Benefits**

* Enhanced Circuit Density: The small size of SMD resistors allows for increased circuit density and miniaturization of electronic devices.

* Improved Performance: The stable performance of SMD resistors contributes to reliable and consistent circuit operation.

* Cost Savings: SMD resistors offer a cost-effective solution for high-volume production.

**Applications**

* Consumer Electronics: SMD resistors are widely used in various consumer electronic devices, such as smartphones, laptops, and digital cameras.

* Industrial Automation: They are employed in industrial control systems, sensors, and other industrial equipment.

* Medical Devices: SMD resistors find application in medical devices such as patient monitors, imaging systems, and surgical instruments.

* Automotive Electronics: SMD resistors are used in automotive electronic systems, including engine control modules, anti-lock brake systems, and infotainment systems.
