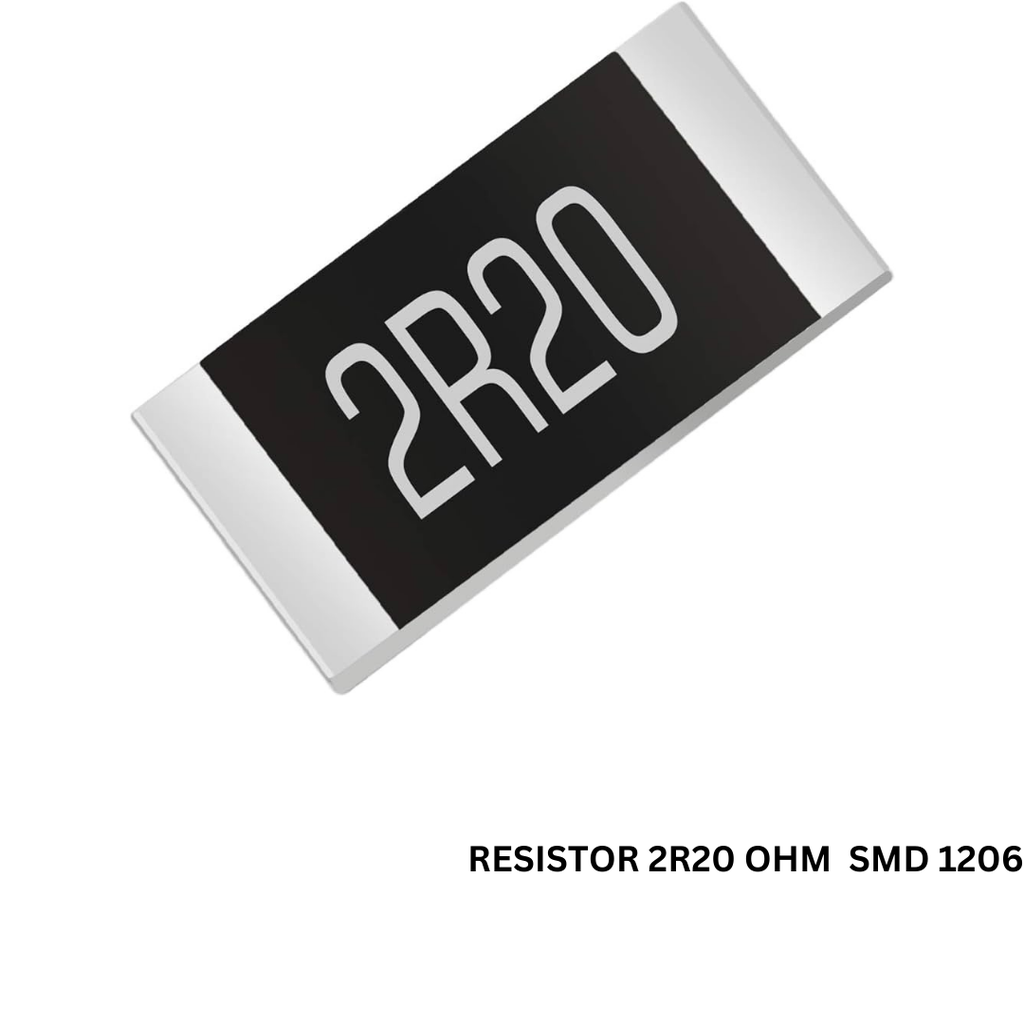

Resistor 2R20 SMD 1206 ®

**DESCRIPTION**

**Resistor 2R20 SMD 1206**

* **Type:** Surface Mount Resistor (SMD)

* **Size:** 1206 (3.2 x 1.6 mm)

* **Resistance:** 2.2 ohms

* **Tolerance:** ±1%

* **Power Rating:** 1/8 watt

* **Operating Temperature Range:** -55°C to +125°C

**SPECIPHICATION**

* **Resistance Range:** 1 ohm to 10 megaohms

* **Tolerance:** ±1%, ±2%, ±5%, ±10%

* **Power Rating:** 1/8 watt, 1/4 watt, 1/2 watt, 1 watt

* **Operating Temperature Range:** -55°C to +125°C

**FEATURE**

* **Compact Size:** The 1206 size is ideal for space-constrained applications.

* **High Power Rating:** The 1/8 watt power rating allows for higher current flow.

* **Wide Resistance Range:** The resistance range of 1 ohm to 10 megaohms covers a wide variety of applications.

* **Tight Tolerance:** The ±1% tolerance ensures accurate resistance values.

**BENEFITS**

* **Space Saving:** The compact size saves valuable board space.

* **High Current Handling:** The high power rating allows for higher current flow.

* **Wide Range of Applications:** The wide resistance range and tight tolerance make this resistor suitable for a variety of applications.

**APPLICATION**

* **Consumer Electronics:** This resistor is commonly used in consumer electronics devices such as smartphones, tablets, and laptops.

* **Industrial Electronics:** This resistor is also used in industrial electronics applications such as power supplies and motor controls.

* **Automotive Electronics:** This resistor is also used in automotive electronics applications such as engine control modules and ABS systems.
