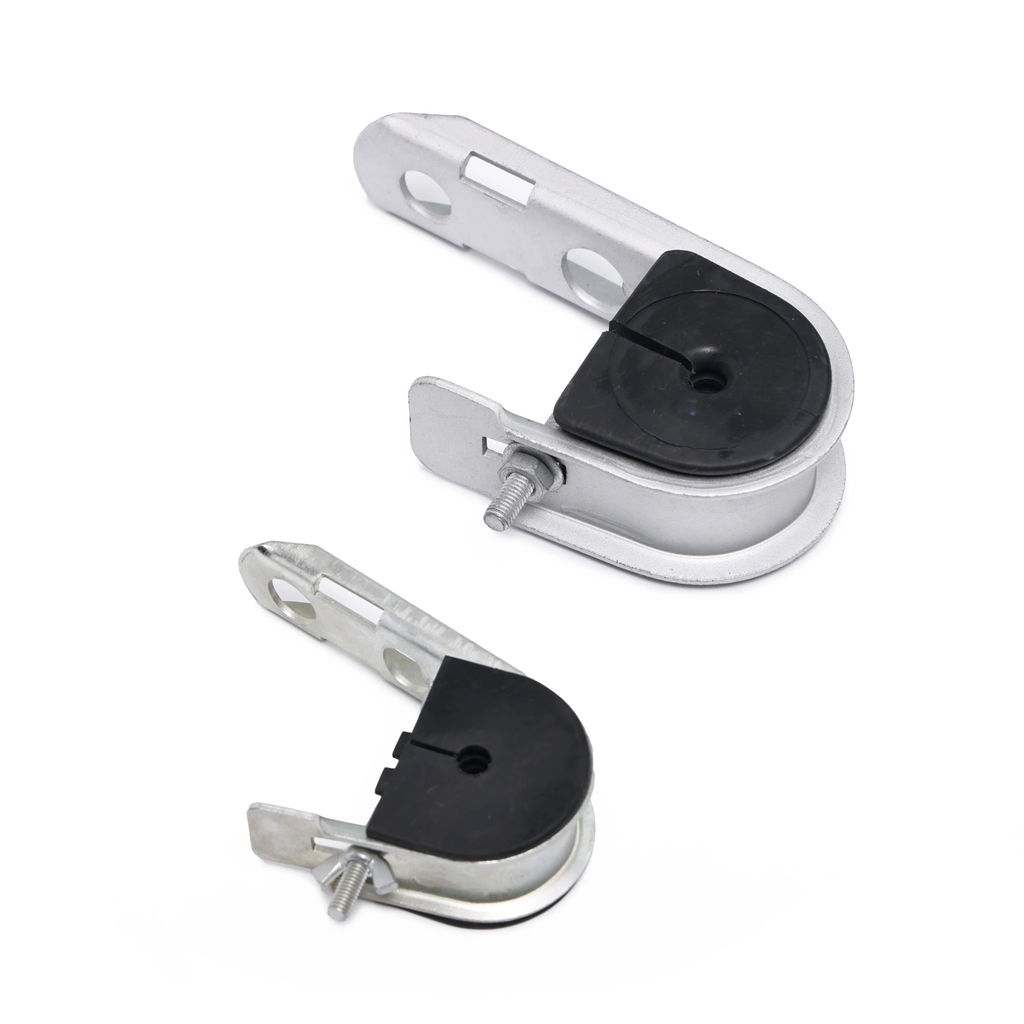

Unionfiber J hook type Suspension Clamp‚ Suitable for Cable Diameter: 8-12mm‚ Breaking load: 4KN

How to Install:

1) Suspension from a hook bolt:  The clamp can be installed on a 14mm-16mm hook bolt on drilled wooden pole.

2)Secured with pole banding: Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine.

3)With Bolted: The clamp can be secured with a 14mm-16mm bolt on drilled wood pole

J Hook Suspension Pole clamp are made of carbon steel with hot dipped zinc surface treatment which can last very long period without rusty for pole accessories. It can be used with stainless steel band and buckles to fix on the pole to hold the cables. Different cable sizes are available. There will be no sharp edges, and corners rounded. All items will be clean rust free, smooth and uniform throughout and will also be free from burrs. Plz kindly contact us for more details information.

ADSS Suspension Clamp Description:

-Suspension device: J Hook Suspension Clamp of ADSS cable for span < 100m

-Suspension clamp Wire Range: 10-15mm/ 15-20mm

-Suspension clamp Breaking load: 4KN

-Suspension clamp Cable Type: FO Round

-Suspension clamp Production Type : Suspension Clamp

Features:

1.It is for ADSS cable with span not more than 100m and mid support of angle less than 10° Each pole with one set

2.The broken strength>10KN,The vertical slipping strength>1.5KN

Application:

The suspension clamp is used for the direct suspension of round fiber optic ADSS cables with Ø 8.0 to 20.0 mm on short spans (max 100m) at intermediate poles on straight routes.
